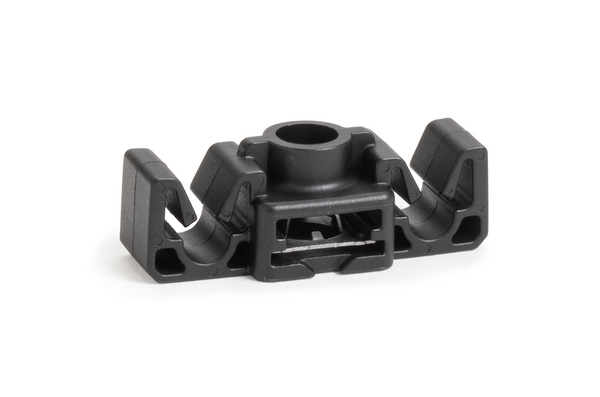

Brake Line Clip with 6 mm smooth boss mount, 2x 5.1 mm Diameter, POM, Black, 2500/ctn
Part No. 151-04831
|
Copied
- Delivers higher tube retention force than conventional open clips
- Available for standard brake line diameter
- Ensures a stable, secure hold while minimizing lateral tube movement
- Metal smooth boss mount for secure mounting on 6 mm as cast boss
| Color | Black (BK) |
| Description | HellermannTyton's brake line clips are engineered to OEM specifications for a secure fit and long-term durability. |
| Global Part Number | HRDMOC5.1SBC6-POM-BK |
| Part Number | 151-04831 |
| Short Description | Brake Line Clip with 6 mm smooth boss mount, 2x 5.1 mm Diameter, POM, Black, 2500/ctn |
| Type | HRDMOC5.1SBC6 |
| Bundle Diameter (imperial) | 0.20-0.20" |
| Bundle Diameter Max. (imperial) | 0.20" |
| Bundle Diameter Max. (metric) | 5.1mm |
| Bundle Diameter Min. (imperial) | 0.20" |
| Bundle Diameter Min. (metric) | 5.1mm |
| Bundle Quantity | 2 |
| Height (imperial) | 0.54" |
| Height (metric) | 13.7mm |
| Length (imperial) | 0.61" |
| Length (metric) | 15.5mm |
| Mounting Hole Diameter (imperial) | 0.23 - 0.24 " |
| Mounting Hole Diameter (metric) | 5.8 - 6.2 mm |
| Mounting Hole Diameter Max. (imperial) | 0.24" |
| Mounting Hole Diameter Min. (imperial) | 0.23" |
| Width (imperial) | 0.61" |
| Width (metric) | 15.5mm |
| CE Certification | No |
| CSA Certified | No |
| Flammability | UL 94 HB |
| Material | POM |
| Material | Polyacetal (POM) |
| Operating Temperature | -40°F to +221°F (-40°C to +105°C) |
| Prop65 Warning | No |
| REACH Conformity | Yes |
| ROHS Compliant | Yes |
| UL Listed (US and Canada) | No |
| UL Listed (US) | No |
| UL Recognized (US and Canada) | No |
| UL Recognized (US) | No |
