Connector Clip, 11 mm, Panel Thickness 1.0 - 3.0 mm, PA66HIRHSUV, Black, 7000/carton
Art.-No. 151-04083
|
|
Copied
- Connector clip designed for 11 mm slots according to EWCAP-005-11mm.
- Fits 1 to 3 mm panel thickness for versatile usage.
- Clip can be installed by hand – no need for hardware or tools.
- Connector is easy to install and release, for non-destructive re-use.
- Integrated metal clip delivers strong retention on panel edge.
Show more
Show less
| Application | Connector clip for edges, for fastening cables and wires in places where screwing or adhering is not possible. |
| Color | Black (BK) |

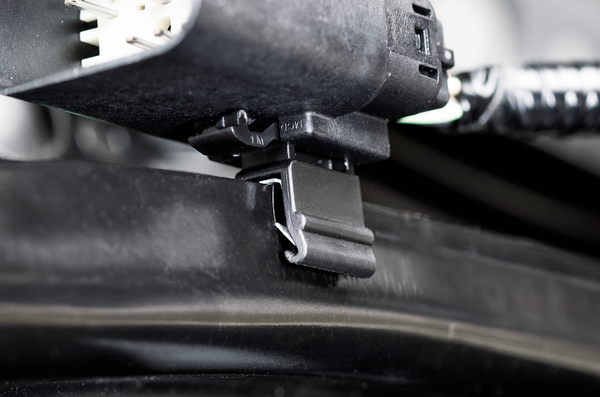

| Description | Connector clips feature various attachment point configurations to accommodate the many connectors on the market. They are first mated with a connector on a wire harness or cable assembly, then secured to an edge using the integrated clip. Ideal for applications where holes or adhesives are not suitable. |
| PART DESCRIPTION | EC6CC11-PA66HIRHSUV-BK |
| Packaging Type | carton |
| Part No. | 151-04083 |
| Product Subfamily | Connector Clips |
| Product family | Self-Affixing Clips |
| Short Description | Connector Clip, 11 mm, Panel Thickness 1.0 - 3.0 mm, PA66HIRHSUV, Black, 7000/carton |
| Type | EC6CC11 |
| UV Resistant | Yes |
| Fixation Method | Edge Clip |
| Height (imperial) | 0.65" |
| Height (metric) | 16.5mm |
| Length (imperial) | 0.92" |
| Length (metric) | 23.4mm |
| Panel Thickness (imperial) | 0.04 - 0.12" |
| Panel Thickness (metric) | 1.0 - 3.0mm |
| Panel Thickness Max. (Imperial) | 0.12" |
| Panel Thickness Max. (Metric) | 3.0mm |
| Panel Thickness Min. (Imperial) | 0.04" |
| Panel Thickness Min. (Metric) | 1.0mm |
| Width (imperial) | 0.37" |
| Width (metric) | 9.4mm |
| CE Certification | No |
| CSA Certified | No |
| EWCAP Standard | EWCAP-005-11 |
| Flammability | UL 94 HB |
| Halogen Free | Yes |
| Material | PA66HIRHSUV |
| Material | Polyamide 6.6 high impact modified, heat and UV stabilized (PA66HIRHSUV) |
| Operating Temperature | -40°F to +221°F (-40°C to +105°C) |
| Prop65 Warning | No |
| REACH Conformity | Yes |
| ROHS compliant | Yes |
| UL Listed (US and Canada) | No |
| UL Listed (US) | No |
| UL Recognized (US and Canada) | No |
| UL Recognized (US) | No |
