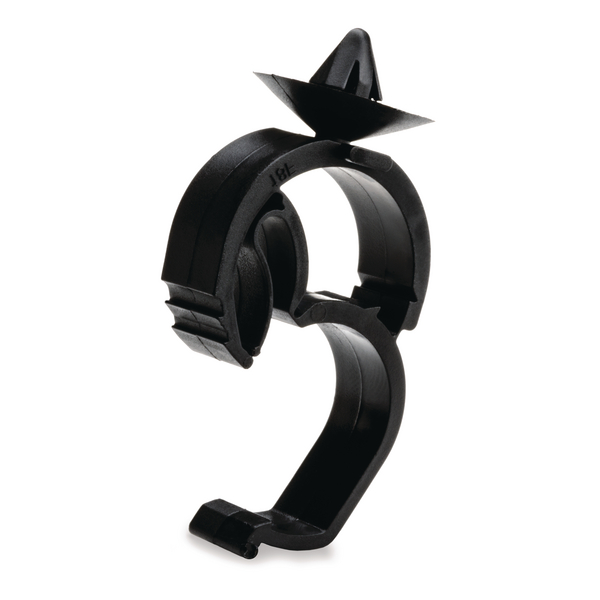

Automatic Harness Clips - Non-Connectable Push Mount Max Bun Dia .79" Black 900 /pkg
Part No. 151-00367
|
|
Copied
This product is not available anymore.
- Push and click closure for attachment of wires.
- Clip is clicked into a specific hole.
| Application | Automatic Harness Clips were originally designed for the automotive industry; however these clips are now finding a wide range of applications in industries using sheet metal panels. |
| Color | Black (BK) |
| Description | These clips offer a simple and secure method of attaching cables to panels. They can be attached to the panel prior to installing the cables. Simply pushing the cable into place closes the clip and activates the automatic locking feature. |
| Global Part Number | AHC2AH-PA66HIRHS-BK |
| Key product features | for faster processing, lockable |
| Packaging Type | carton |
| Part No. | 151-00367 |
| Product Subfamily | One Piece |
| Product family | Harness Clips |
| Short Description | Automatic Harness Clips - Non-Connectable Push Mount Max Bun Dia .79" Black 900 /pkg |
| Type | AHC2AH |
|
|
|
| Bundle Diameter Max. (metric) | 20.0mm |
| Bundle Diameter Min. (metric) | 11.0mm |
| Disc Diameter (imperial) | 0.79" |
| Disc Diameter (metric) | 20.0mm |
| Length (imperial) | 1.16" |
| Length (metric) | 29.5mm |
| Length 2 (imperial) | 0.28" |
| Length 2 (metric) | 7.0mm |
| Mounting Hole Diameter (metric) | 6.2 - 6.7 mm |
| Mounting Hole Diameter Max. (imperial) | 0.26" |
| Mounting Hole Diameter Min. (imperial) | 0.244" |
| Panel Thickness Max. (Imperial) | 0.08" |
| Panel Thickness Max. (Metric) | 3.00mm |
| Panel Thickness Min. (Imperial) | 0.02" |
| Panel Thickness Min. (Metric) | 0.50mm |
| Width (imperial) | 0.39" |
| Width (metric) | 10.0mm |
