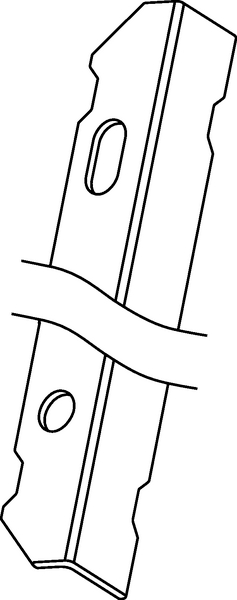

Mini Channel, 5.9" Long, 180° Angle, Straight, PPT20, Black, 500/pkg
Art.-No. 151-02655
|
|
Copied
- 90 degree channel allows specific guidance around corners or obstructions.
- U-Shape channel provides three sides of protection for wire or bundle.
- High-quality polypropylene material with high heat resistance.
- Protects against abrasion and other environmental factors.
- Mounting holes for cable ties allow for easy bundling.
Show more
Show less
| Application | HellermannTyton Mini Channels provide protection and configurable routing in a cost-effective wire management solution. The variety of sizes and configurations enables engineers and installers to create optimum routing scenarios. Mini channels replace engineered channels that are costly to design and develop. |
| Color | Black (BK) |
| Description | HellermannTyton Mini Channels provide protection and configurable routing in a cost-effective wire management solution. The variety of sizes and configurations enables engineers and installers to create optimum routing scenarios. Mini channels replace engineered channels that are costly to design and develop. |
| PART DESCRIPTION | 150STRTCHNL-PPTD20-BK |
| Packaging Type | pack |
| Part No. | 151-02655 |
| Product Subfamily | Mini Cable Channels |
| Product family | Clips |
| Short Description | Mini Channel, 5.9" Long, 180° Angle, Straight, PPT20, Black, 500/pkg |
| Type | 150STRTCHNL |
| UV Resistant | No |
| Angle | 180 |
| Height (imperial) | 0.60" |
| Height (metric) | 15.0mm |
| Length (imperial) | 5.9" |
| Length (metric) | 150.0mm |
| Mounting Hole Diameter (imperial) | 0.24 - 0.27 " |
| Mounting Hole Diameter (metric) | 6.2 - 6.8 mm |
| Mounting Hole Diameter Max. (imperial) | 0.27" |
| Mounting Hole Diameter Min. (imperial) | 0.24" |
| Width (imperial) | 0.06" |
| Width (metric) | 1.5mm |
| BABA compliant | YES |
| CE Certification | No |
| CSA Certified | No |
| Flammability | UL 94 HB |
| Halogen Free | Yes |
| Material | PPTD20 |
| Material | Polypropylene 20% Talkum (PPTD20) |
| Operating Temperature | -40°F to +149°F (-40°C to +65°C) |
| Prop65 Warning | No |
| REACH Conformity | No |
| ROHS compliant | No |
| UL Listed (US and Canada) | No |
| UL Listed (US) | No |
| UL Recognized (US and Canada) | No |
| UL Recognized (US) | No |
