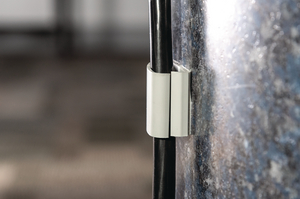

WAC Adhesive Cable Clamp, 0.75" Max. Bundle Dia, PVC, Gray, 500/pkg
Art.-No. 151-00667
| WAC075-PVC-GY
|
Copied
- Lead-in angle design allows for quick and easy installation of wires and cables.
- Rubber based adhesive allows for a permanent bond to most surfaces.
| Color | Gray (GY) |
| Description | The WAC Adhesive cable clamps are designed with lead in angles allowing for easy insertion of wires and cables. The rubber based adhesive allows for a permanent bond to most surfaces. Available in two sizes. |
| PART DESCRIPTION | WAC075-PVC-GY |
| Packaging Type | pack |
| Part No. | 151-00667 |
| Product Subfamily | Adhesive Cable Clamps |
| Product family | Self-Affixing Clamps |
| Product family | Products for wires and hoses |
| Short Desc. | WAC Adhesive Cable Clamp, 0.75" Max. Bundle Dia, PVC, Gray, 500/pkg |
| Type | WAC075 |
| UV Resistant | No |
| Height (imperial) | 0.62" |
| Height (metric) | 15.8mm |
| Height 2 (imperial) | 1.05" |
| Height 2 (metric) | 26.7mm |
| Length (imperial) | 1.13" |
| Length (metric) | 28.7mm |
| Max. Bundle Diameter (imperial) | 0.75" |
| Max. Bundle Diameter (metric) | 19.1mm |
| Min. Bundle Diameter (imperial) | 0.5" |
| Min. Bundle Diameter (metric) | 12.7mm |
| Width (imperial) | 1.0" |
| Width (metric) | 25.4mm |
| Adhesive | Self adhesive |
| BABA compliant | YES |
| CE Certification | No |
| CSA Certified | No |
| Flammability | UL 94 V-0 (excluding adhesive) |
| Material | PVC |
| Material | Polyvinylchloride (PVC) |
| Operating Temperature | +122°F (+50°C) |
| Prop65 Warning | No |
| REACH Conformity | No |
| ROHS compliant | No |
| UL Listed (US and Canada) | No |
| UL Listed (US) | No |
| UL Recognized (US and Canada) | No |
| UL Recognized (US) | No |
