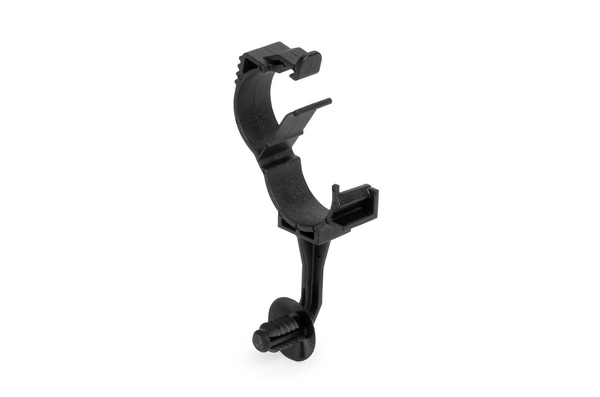

Series 7 LOC Locking Clamp, 15-19 mm, with Round Fir Tree, PA66HIRHSUV, Black, 2000/ctn
Part No. 151-04720
|
|
Copied
- All-in-one bundling and fastening solution reduces costs and assembly time.
- Versatile, high-performance fir tree design demonstrates easy push-in force with high pull-out strength.
- Accommodates tubing from 15 to 19 mm in diameter, for flexible sizing with a single part.

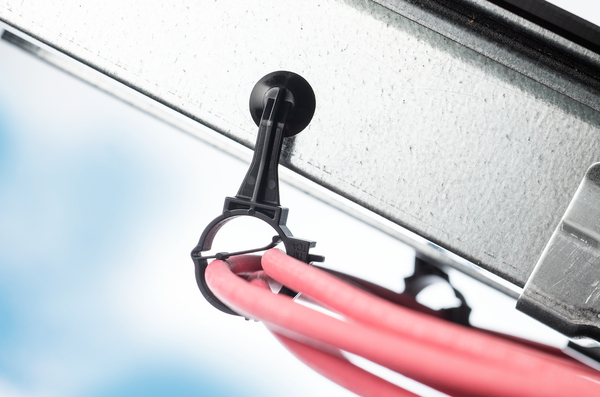

| Application | These clips offer fast and easy bundling of convuluted tubes and pipes, particularly for the automotive and solar industries. High-impact-modified, heat-resistant, UV-stabilized material is ideal for long-term performance in extreme weather. |
| Color | Black (BK) |
| Description | Series 7 offset LOC (Locking Option Clamp) routes and positions bundles away from a mounting hole. Secure locking mechanism can be reopened for bundle servicing. Rigid offset bar eliminates potential bending of wire or cables once installed. The combination of high-specification materials and manufacturer-specific design delivers an optimal solution for installers and maintenance crews. |
| Global Part Number | LOC1519XOS25FT65AW-PA66HIRHSUV-BK |
| Packaging Type | carton |
| Part No. | 151-04720 |
| Short Description | Series 7 LOC Locking Clamp, 15-19 mm, with Round Fir Tree, PA66HIRHSUV, Black, 2000/ctn |
| Type | LOC1519XOS25FT65AW |
| UV Resistant | Yes |
| Bundle Diameter Max. (imperial) | 0.75" |
| Bundle Diameter Max. (metric) | 19.0mm |
| Bundle Diameter Min. (imperial) | 0.59" |
| Bundle Diameter Min. (metric) | 15.0mm |
| Fixation Method | Fir Tree |

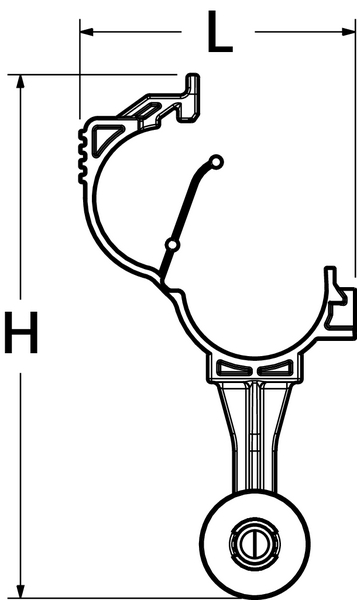

| Height (imperial) | 3.18" |
| Height (metric) | 80.87mm |
| Length (imperial) | 1.67" |
| Length (metric) | 42.4mm |
| Mounting Hole Diameter (imperial) | 0.24 - 0.28 " |
| Mounting Hole Diameter (metric) | 6.1 - 7.0 mm |
| Mounting Hole Diameter Max. (imperial) | 0.28" |
| Mounting Hole Diameter Min. (imperial) | 0.24" |
| Panel Thickness (imperial) | 0.02 - 0.32" |
| Panel Thickness (metric) | 0.6 - 8.25mm |
| Panel Thickness Max. (Imperial) | 0.32" |
| Panel Thickness Max. (Metric) | 8.25mm |
| Panel Thickness Min. (Imperial) | 0.02" |
| Panel Thickness Min. (Metric) | 0.6mm |

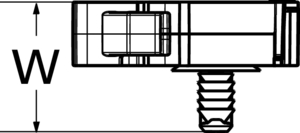

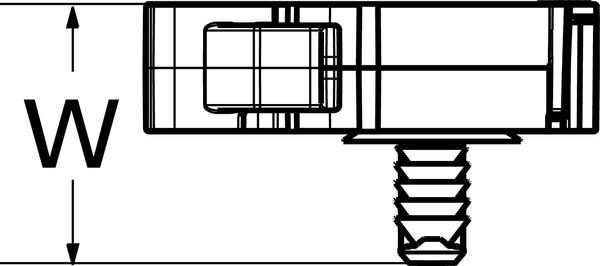

| Width (imperial) | 0.10" |
| Width (metric) | 24.38mm |
| CE Certification | No |
| CSA Certified | No |
| Flammability | UL 94 HB |
| Material | PA66HIRHSUV |
| Material | Polyamide 6.6 high impact modified, heat and UV stabilized (PA66HIRHSUV) |
| Prop65 Warning | No |
| REACH Conformity | Yes |
| ROHS Compliant | Yes |
| UL Listed (US and Canada) | No |
| UL Listed (US) | No |
| UL Recognized (US and Canada) | No |
| UL Recognized (US) | No |
