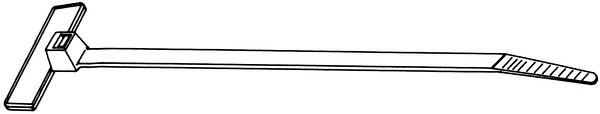

Identification Tie, 4.3" Long, 18lb Tensile Strength, PA66, Black, 100/pkg
Art.-No. 111-81910
| IT18FL0C2
|
Copied
- Identification plate feature allows bundles to be easily marked and identified.
- Wire and cable harnesses can be secured and identified using just one product, which saves time.
- Plates can be marked manually with a permanent marker or with a pre-printed adhesive label.
| Application | Tie and identify bundles of cable in one operation. |
| Color | Black (BK) |
| Description | Identification cable ties feature an identification plate that allows wire and cable bundles to be easily marked and identified. These ties enable wire and cables to be secured and identified using just one product, saving installation time. The plates can be marked using a permanent marker or with a HellermannTyton adhesive label. |
| Global Part Number | IT18FL-PA66-BK |
| Key product features | tamper-evident |
| Packaging Type | pack |
| Part No. | IT18FL0C2 |
| Print Method | manual marking |
| Product Subfamily | Identification Cable Ties |
| Product family | Cable Ties |
| Short Description | Identification Tie, 4.3" Long, 18lb Tensile Strength, PA66, Black, 100/pkg |
| Type | IT18FL |
| UV Resistant | No |
|
|
|
| Bundle Diameter Max. (imperial) | 0.75" |
| Bundle Diameter Max. (metric) | 19.0mm |
| Bundle Diameter Min. (imperial) | 0.06" |
| Bundle Diameter Min. (metric) | 1.5mm |
| Cable Tie Closure | plastic pawl |
| Fixation Method | None |
| Height (imperial) | 0.35" |
| Height (metric) | 9.0mm |
| Identification Plate Position | stands of bundle |
| Length (imperial) | 4.3" |
| Length (metric) | 110.0mm |
| Min. Tensile Strength (imperial) | 18lbs |
| Min. Tensile Strength (metric) | 80N |
| Outside Diameter Max. (imperial) | 0.75" |
| Outside Diameter Max. (metric) | 19.00mm |
| Outside Diameter Min. (imperial) | 0.059" |
| Outside Diameter Min. (metric) | 1.50mm |
| Releasable Closure | No |
| Width (imperial) | 0.81" |
| Width (metric) | 20.5mm |
| Width 2 (imperial) | 0.1" |
| Width 2 (metric) | 2.5mm |
| CE Certification | Yes |
| CSA Certified | No |
| Flammability | UL 94 V-2 |
| Halogen Free | Yes |
| Material | PA66 |
| Material | Polyamide 6.6 (PA66) |
| Operating Temperature | -40°F to +185°F (-40°C to +85°C) |
| Prop65 Warning | No |
| REACH Conformity | Yes |
| ROHS Compliant | Yes |
| UL File Number [Logo] | E64139 [C_RU_US_62275_Type11] |
| UL Listed (US and Canada) | No |
| UL Listed (US) | No |
| UL Recognized (US and Canada) | Yes |
| UL Recognized (US) | Yes |
| UL Type Number | 11 |
