Weld Stud Mount, Max Bundle Diameter 6.0", Stud Diameter .24", PA66HIRHSUV, Black, 500/pkg
Part No. 151-00146
| WSM60IMHSUVH1
|
Copied
- Design makes installation along frame rails fast and easy
- Using weld stud eliminates the need for grinding down painted surfaces which saves time
- Weld Stud eliminates need for stocking multiple sized metal P-Clamps which saves time and cost
| Brand Family | WS-Series |
| Color | Black (BK) |

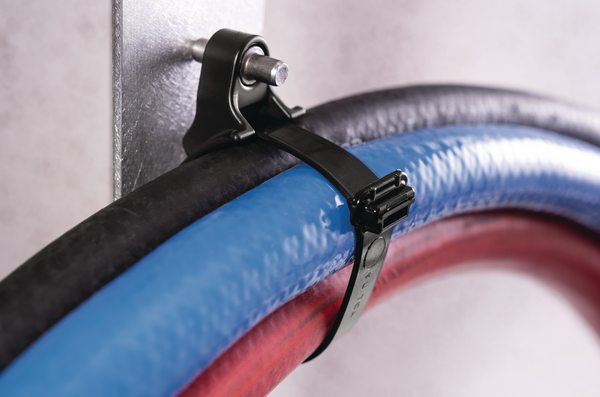

| Description | When used in conjunction with a cable tie, the Weld Stud Mount significantly reduces time and labor, and eliminates the need for multiple sized P-clamps, nuts, and bolts. Simply weld the stud to the surface of any painted frame rail, and begin bundling with HellermannTyton cable ties. This eliminates the need in having to grind the surface in preparation. Adjusts to a wide variety of bundle diameters when used with HellermannTyton heavy duty T120, T250, T255 and Wide Strap Cable Ties. |
| Global Part Number | WSM6-PA66HIRHSUV-BK |
| Part Number | WSM60IMHSUVH1 |
| Product Family | Heavy Duty Cable Tie Mounts |
| Product Subfamily | Weld Stud Mounts |
| Short Description | Weld Stud Mount, Max Bundle Diameter 6.0", Stud Diameter .24", PA66HIRHSUV, Black, 500/pkg |
| Type | WSM6 |
| Fixation Method | Stud Mount |
| Height (imperial) | 1.06" |
| Height (metric) | 27.0mm |
| Length (imperial) | 1.32" |
| Length (metric) | 33.5mm |
| Max. Cable Tie Width (imperial) | 0.51" |
| Max. Cable Tie Width (metric) | 13.0mm |
| Mounting Hole Shape | Round |
| Stud Diameter (imperial) | 0.24" |
| Stud Diameter (metric) | 6.0 mm |

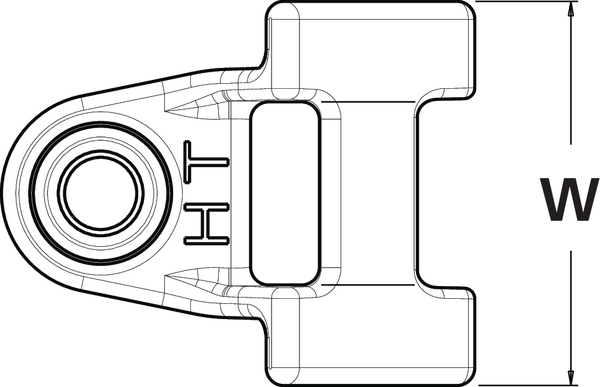

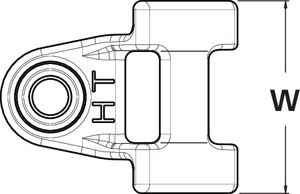

| Width (imperial) | 1.07" |
| Width (metric) | 27.2mm |
| CE Certification | No |
| CSA Certified | No |
| Flammability | UL 94 HB |
| Hazardous Goods | No |
| Material | PA66HIRHSUV |
| Material | Polyamide 6.6 high impact modified, heat and UV-resistant (PA66HIRHSUV) |
| Operating Temperature | -40°F to +221°F (-40°C to +105°C) |
| Prop65 Warning | No |
| REACH Conformity | Yes |
| ROHS Compliant | Yes |
| UL Listed (US and Canada) | No |
| UL Listed (US) | No |
| UL Recognized (US and Canada) | No |
| UL Recognized (US) | No |
| UV Resistant | Yes |
