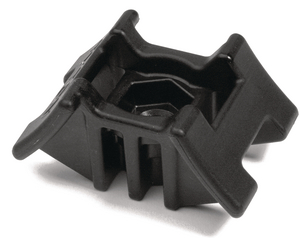

2-Way Saddle Mount, 3.5" Max Bundle Diameter, 0.25" Stud Diameter, PA66HIRHSUV, Black, 10/pkg
Art.-No. 151-29405
| S2HM25-PA66HIRHSUV-BK
|
Copied
- Separates bundles from wear and chafing, providing additional longevity.
- Hexagonal retention feature (S2HM25) captures a bolt or nut requiring tool access from the back side only.
- A socket counterbore allows securing with a socket wrench from the top side for use with a weld stud or bolt (S2CM25.)
- Made from impact modified, heat stabilized, UV resistant material making it ideal for heavy duty applications.
| Brand Family | S-Series |
| Color | Black (BK) |
| Description | HellermannTyton's saddle mount can be installed between two bundles (such as wires, cables, hoses, tubing, conduit, etc.) to separate them and prevent chafing and wear. Fastened to a frame rail or mounting bracket, the H-profile on the saddle mount provides a tight circumferential loop on large and small bundles. Cable ties up to 1/2" wide are used to secure the bundles. |
| Key product features | vibration absorbing, for multiple routing |
| PART DESCRIPTION | S2HM25-PA66HIRHSUV-BK |
| Packaging Type | bag |
| Part No. | S2HM250HIRHSP2 |
| Product family | Two-Way Saddle Mounts |
| Product family | Products for parallel/multiple routing |
| Short Desc. | 2-Way Saddle Mount, 3.5" Max Bundle Diameter, 0.25" Stud Diameter, PA66HIRHSUV, Black, 10/pkg |
| Type | S2HM25 |
| UV Resistant | Yes |
|
|
|
| Fixation Method | Screw Mounting and Rivet |
| For Cable Tie Series | T50 - T250 |
| Height (imperial) | 0.9" |
| Height (metric) | 23.0mm |
| Height 2 (imperial) | 0.6" |
| Height 2 (metric) | 15.0mm |
| Length (imperial) | 1.8" |
| Length (metric) | 45mm |
| Max. Bundle Diameter (imperial) | 3.5" |
| Max. Bundle Diameter (metric) | 89.0mm |
| Max. Cable Tie Width (imperial) | 0.53" |
| Max. Cable Tie Width (metric) | 13.5mm |
| Mounting Hole Diameter (imperial) | 0.24 " |
| Mounting Hole Diameter (metric) | 6.0 mm, 6.35 mm (hexagonal) |
| Mounting Screw Type | 1/4" (M6) Screw |
| Stud Diameter (imperial) | 0.25" |
| Stud Diameter (metric) | 6.35 mm |
| Width (imperial) | 1.2" |
| Width (metric) | 30.0mm |
| CE Certification | No |
| CSA Certified | No |
| Flammability | UL 94 HB |
| Material | PA66HIRHSUV |
| Material | Polyamide 6.6 high impact modified, heat and UV stabilized (PA66HIRHSUV) |
| Operating Temperature | -40°F to +221°F (-40°C to +105°C) |
| Operating Temperature, 1000h | +320°F (+160°C) |
| Operating Temperature, 5000h | +257°F (+125°C) |
| Operating Temperature, 500h | +329°F (+165°C) |
| Prop65 Warning | No |
| ROHS compliant | Yes |
| UL Listed (US and Canada) | No |
| UL Listed (US) | No |
| UL Recognized (US and Canada) | No |
| UL Recognized (US) | No |
