Magnetic Pipe Mount, 1.02", Neodymium Magnet/POM/ST, 15lb Pull Force, 100/bag
Art.-No. 151-03650
|
|
Copied
- No drilling or extra hardware required – just secure to steel surface.
- Magnetic mounts are reliable even in debris, dirt, and oil.
- Use for permanent mounting or as a temporary installation tool.
- Reuse and reposition capabilities allow for a flexible mounting solution.
- Easily remove without residue.
Show more
Show less
| Color | Black (BK) |

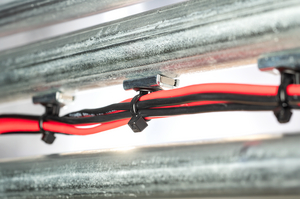

| Description | Magnetic cable tie mounts route bundles by securing to steel surfaces without the need for a mounting hole. Simply attach the wire bundle to the mount with a cable tie and position it onto the beam, metal joist, ceiling channel, conveyor frame, or other steel surface. The pipe mount has a unique shape to adhere perfectly to steel pipes. The mounts are simple to secure and can attach to surfaces contaminated with oil or debris. Ultra-strong neodymium magnets are ideal as a permanent mount or for temporary applications. Reuse and reposition them for ultimate flexibility without needing to replace or repurchase parts. Magnetic cable tie mounts can be paired with standard T18-T50 cable ties. |
| Magnetic pull strength (N) | 66N |
| Magnetic pull strength (kgf) | 6.73 |
| Magnetic pull strength (lb/ft) | 15lbf-ft |
| PART DESCRIPTION | MAGCTM20P-NDFEB45M/POM/ST-BK |
| Packaging Type | pack |
| Part No. | 151-03650 |
| Product Subfamily | Magnetic Cable Tie Mounts |
| Product family | Magnetic Mounts |
| Rotation (°) | 360° |
| Short Description | Magnetic Pipe Mount, 1.02", Neodymium Magnet/POM/ST, 15lb Pull Force, 100/bag |
| Type | MAGCTM20P |
| UV Resistant | No |

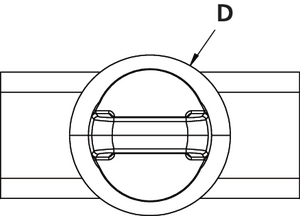

| Diameter (imperial) | 0.55" |
| Diameter (metric) | 14.0mm |
| Fixation Method | Magnet |
| For Cable Tie Series | T18 |
| Height (imperial) | 0.41" |
| Height (metric) | 10.5mm |
| Length (imperial) | 1.02" |
| Length (metric) | 26.0mm |
| Max. Cable Tie Width (imperial) | 0.23" |
| Max. Cable Tie Width (metric) | 5.84mm |
| Width (imperial) | 0.27" |
| Width (metric) | 7.0mm |
| CE Certification | No |
| CSA Certified | Yes |
| Halogen Free | Yes |
| Material | NDFEB45M, POM, ST |
| Material | Neodymium alloy 45M (NDFEB45M), Polyacetal (POM), Steel (ST) |
| Operating Temperature | -40°F to +176°F (-40°C to +80°C) |
| Prop65 Warning | No |
| REACH Conformity | Yes |
| ROHS compliant | Yes |
| Reusable (Yes/No) | Yes |
| UL Listed (US and Canada) | No |
| UL Listed (US) | No |
| UL Recognized (US and Canada) | No |
| UL Recognized (US) | No |
