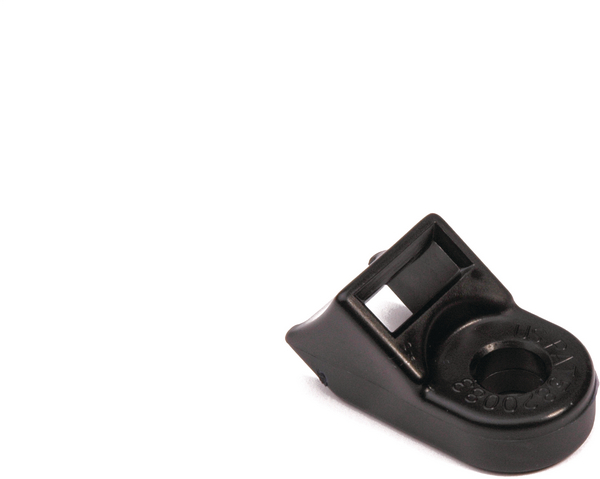

Standard Torque Cable Tie Mount, Mtg Hole Dia. 0.3125", Max Torque 115.0 in lbs, PA66HIRHSUV, Black, 500/pkg
Art.-No. 151-00440
| HDM3120HIRH4
|
Copied
- Mount and tie combination makes it easy to service bundles in the field.
- Made from impact modified, heat stabilized, UV resistant material, ideal for heavy duty environments.
- Eliminates the needs for multiple sized fix diameter clamps.
| Application | The heavy duty mount, when used with a cable tie, eliminates the need to carry multiple sizes of fixed bundle diameter clamps, which reduces inventory and purchasing costs while simplifying the assembly process. |
| Color | Black (BK) |
| Description | These mounts contain a small tab inside the mounting hole to temporarily engage the threads, which allows assemblers to preinstall the mount on a stud before securing with a washer and a nut. For use with HellermannTyton heavy duty T120, T250, T255 and Wide Strap Cable Ties. |
| PART DESCRIPTION | HDM312-PA66HIRHSUV-BK |
| Packaging Type | pack |
| Part No. | HDM3120HIRH4 |
| Product Subfamily | Mounts Secured with Mechanical Fasteners - Single Bundle |
| Product family | Heavy Duty Cable Tie Mounts |
| Short Description | Standard Torque Cable Tie Mount, Mtg Hole Dia. 0.3125", Max Torque 115.0 in lbs, PA66HIRHSUV, Black, 500/pkg |
| Type | HDM312 |
| UV Resistant | Yes |
|
|
|
| Fixation Method | Screw Mounting and Rivet |
| Height (imperial) | 0.66" |
| Height (metric) | 16.7mm |
| Height 2 (imperial) | .30" |
| Height 2 (metric) | 8.0mm |
| Length (imperial) | 1.43" |
| Length (metric) | 36.3mm |
| Max. Cable Tie Width (imperial) | 0.50" |
| Max. Cable Tie Width (metric) | 12.7mm |
| Mounting Hole Diameter (imperial) | 0.31 " |
| Mounting Hole Diameter (metric) | 7.8 mm |
| Mounting Hole Shape | Round |
| Mounting Screw Type | 5/16" (M8) Screw |
| Stud Diameter (imperial) | 0.31" |
| Stud Diameter (metric) | 7.9 mm |
| Width (imperial) | 0.76" |
| Width (metric) | 19.3mm |
| Width 2 (imperial) | 0.52" |
| Width 2 (metric) | 13.3mm |
| CE Certification | No |
| CSA Certified | No |
| Flammability | UL 94 HB |
| Material | PA66HIRHSUV |
| Material | Polyamide 6.6 high impact modified, heat and UV stabilized (PA66HIRHSUV) |
| Operating Temperature | -40°F to +221°F (-40°C to +105°C) |
| Prop65 Warning | No |
| REACH Conformity | Yes |
| ROHS compliant | Yes |
| Torque Max. (kgf-cm) | 13Nm |
| Torque Max. (lbf-ft) | 9.583lbf-ft |
| UL Listed (US and Canada) | No |
| UL Listed (US) | No |
| UL Recognized (US and Canada) | No |
| UL Recognized (US) | No |
