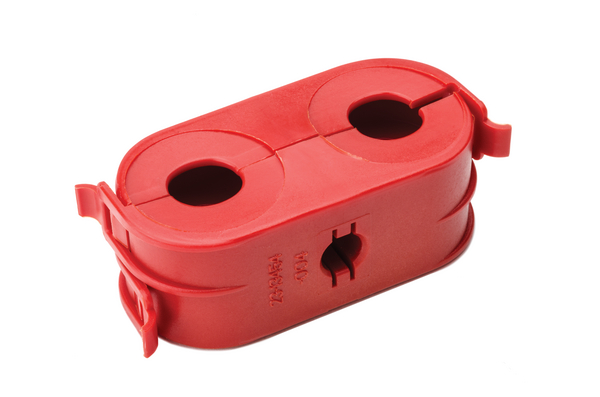

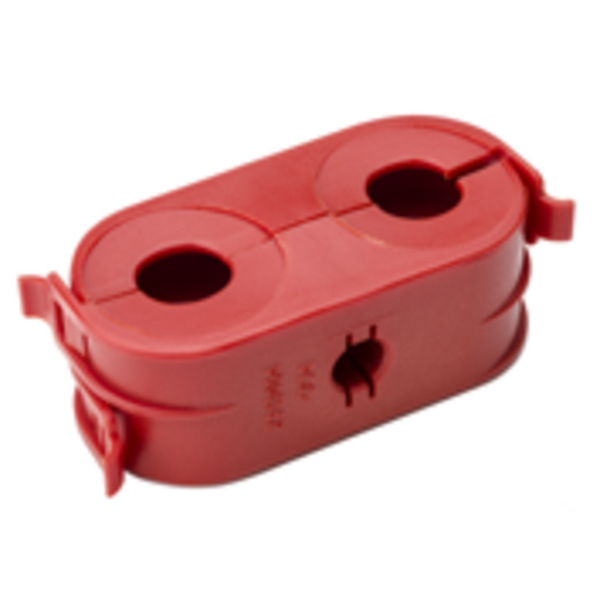

HC Clamp Bundle Separator, Two Hole, PA66HIRGF13, Red, 500/pkg
Art.-No. 133-00997
|
|
Copied
- Separates and secures bundles avoiding abrasion.
- Designed to handle both convoluted tubing and bundles not covered in convoluted tubing.
- Available in a variety of sizes and colors to be easily identified.
| Color | Red (RD) |
| Description | HC Clamps separate multiple bundles and secure them to brackets or frame rails. Each mount has two pawls for easy pre-installation on a threaded fastener prior to securing with a mechanical fastener. HC Clamps have ribs that make them ideal for convoluted tubing, but they can also be used to separate separate bundles that aren't protected with convoluted tubing. |
| Key product features | for multiple routing, vibration absorbing, lockable |
| PART DESCRIPTION | HC2E-PA66HIRGF13-RD |
| Packaging Type | pack |
| Part No. | 133-00997 |
| Product Subfamily | Bundle Separation Clamps |
| Product family | Bundle Separators |
| Short Description | HC Clamp Bundle Separator, Two Hole, PA66HIRGF13, Red, 500/pkg |
| Type | HC2E |
| UV Resistant | No |
| Bundle Diameter First Hole Max. (imperial) | 0.513" |
| Bundle Diameter First Hole Max. (metric) | 13.03mm |
| Bundle Diameter Max. (imperial) | 0.51" |
| Bundle Diameter Max. (metric) | 13.03mm |
| Bundle Diameter Min. (imperial) | 0.51" |
| Bundle Diameter Min. (metric) | 13.03mm |
| Bundle Diameter Second Hole Max. (imperial) | 0.513" |
| Bundle Diameter Second Hole Max. (metric) | 13.03mm |
| Bundle Quantity | 2 |
| Height (imperial) | 1.38" |
| Height (metric) | 34.94mm |
| Length (imperial) | 2.747" |
| Length (metric) | 67.77mm |
| Mounting Hole Diameter (imperial) | 0.32 " |
| Mounting Hole Diameter (metric) | 8.12 mm |
| Width (imperial) | 1.1" |
| Width (metric) | 27.94mm |
| CE Certification | No |
| CSA Certified | No |
| Material | PA66HIRGF13 |
| Material | Polyamide 6.6, high impact modified, glass-fiber reinforced (PA66HIRGF13) |
| Operating Temperature | -40°F to +257°F (-40°C to +125°C) |
| Prop65 Warning | No |
| REACH Conformity | No |
| ROHS compliant | Yes |
| UL Listed (US and Canada) | No |
| UL Listed (US) | No |
| UL Recognized (US and Canada) | No |
| UL Recognized (US) | No |
