Dual Swivel Saddle Spacer for T50-T250, .63"–6" Bundle Diameter, Black, PA66HS, 10/pkg
Art.-No. 151-06503
| DSWS5-PA66HS/PA46-BK
|
Copied
- H-profile of the saddles allows for broad surface contact with the bundle, which minimizes pinching and crushing of the bundle.
- Swivels in 360-degree motion to accommodate any area.
- Accommodates T50–T250 ties to handle both light-duty and heavy-duty applications.
| Color | Black (BK) |
| Description | These saddle spacers are installed between two bundles (such as wires, cables, hoses, tubing, conduit, etc.) to separate and prevent chafing and wear. The mounts can be easily rotated by hand, allowing the bundles to be crossed and rotated at any angle. Cable ties, which secure the bundles, are used with the mounts. The dual swivel saddle spacers accommodate cable ties up to 1/2" wide. |
| Key product features | rotatable, vibration absorbing, for multiple routing |
| PART DESCRIPTION | DSWS5-PA66HS/PA46-BK |
| Packaging Type | bag |
| Part No. | DSWS50HSP2 |
| Short Desc. | Dual Swivel Saddle Spacer for T50-T250, .63"–6" Bundle Diameter, Black, PA66HS, 10/pkg |
| Type | DSWS5 |
| UV Resistant | Yes |
|
|
|
| Height (imperial) | 0.9" |
| Height (metric) | 23.6mm |

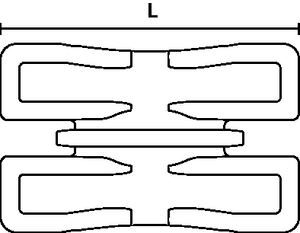

| Length (imperial) | 1.6" |
| Length (metric) | 40.6mm |
| Max. Bundle Diameter (imperial) | 6.0" |
| Max. Bundle Diameter (metric) | 152.0mm |
| Max. Cable Tie Width (imperial) | 0.5" |
| Max. Cable Tie Width (metric) | 12.7mm |
| Min. Bundle Diameter (imperial) | 0.7" |
| Min. Bundle Diameter (metric) | 16.0mm |
| Width (imperial) | 1.0" |
| Width (metric) | 25.4mm |
| CE Certification | No |
| CSA Certified | No |
| Flammability | UL 94 V-2 |
| Material | PA66HS, PA46 |
| Material | Polyamide 6.6 heat stabilized (PA66HS), Polyamide 4.6 (PA46) |
| Min. Extraction Force (metric) | 1112N |
| Operating Temperature | -40°F to +257°F (-40°C to +125°C) |
| Prop65 Warning | No |
| ROHS compliant | Yes |
| UL Listed (US and Canada) | No |
| UL Listed (US) | No |
| UL Recognized (US and Canada) | No |
| UL Recognized (US) | No |
