Dual Swivel Saddle Spacer for T50-T250, Bundle Diameter 0.25 - 3.0", PA66HS/POM, Black, 50/pkg
Art.-No. 151-00644
|
|
Copied
- H-profile of the saddles allows for broad surface contact with the bundle, which minimizes pinching and crushing of the bundle.
- Swivels in 360-degree motion to accommodate any area.
- Accommodates T50–T250 ties to handle both light-duty and heavy-duty applications.
| Application | These fixing element for parallel routing can be used where bundles need separation from each other combined with the necessary functionality to support moving harnesses. |
| Color | Black (BK) |
| Description | These saddle spacers are installed between two bundles (such as wires, cables, hoses, tubing, conduit, etc.) to separate and prevent chafing and wear. The mounts can be easily rotated by hand, allowing the bundles to be crossed and rotated at any angle. Cable ties, which secure the bundles, are used with the mounts. The dual swivel saddle spacers accommodate cable ties up to 1/2" wide. |
| Global Part Number | DSWS4-PA66HS/POM-BK |
| Key product features | rotatable, vibration absorbing, for multiple routing |
| Packaging Type | pack |
| Part No. | 151-00644 |
| Product Subfamily | Dual Swivel Bundle Spacers |
| Product family | Bundle Separators |
| Short Description | Dual Swivel Saddle Spacer for T50-T250, Bundle Diameter 0.25 - 3.0", PA66HS/POM, Black, 50/pkg |
| Type | DSWS4 |
| UV Resistant | No |
|
|
|
| Bundle Diameter Max. (imperial) | 2.99" |
| Bundle Diameter Max. (metric) | 76.0mm |
| Bundle Diameter Min. (imperial) | 0.24" |
| Bundle Diameter Min. (metric) | 6.0mm |
| Bundle Quantity | 2 |
| For Cable Tie Series | T50 - T250 |
| Height (imperial) | 0.7" |
| Height (metric) | 18.0mm |
| Length (imperial) | 0.91" |
| Length (metric) | 23.6mm |
| Max. Cable Tie Width (imperial) | 0.5" |
| Max. Cable Tie Width (metric) | 12.7mm |

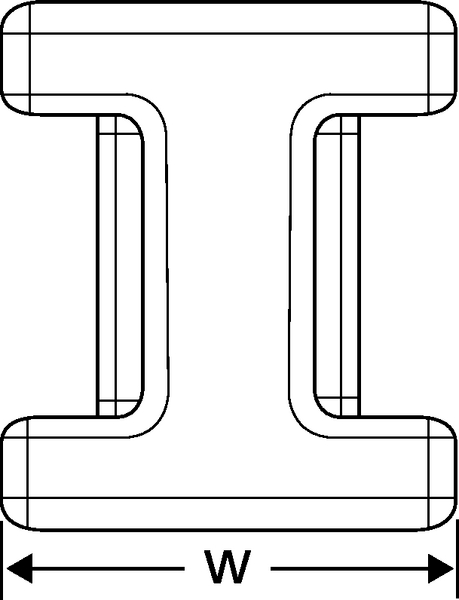

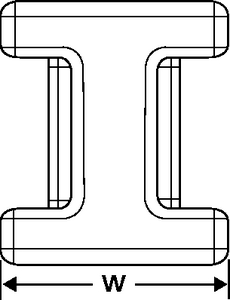

| Width (imperial) | 0.8" |
| Width (metric) | 20.3mm |
| CE Certification | No |
| CSA Certified | No |
| Extraction Force Min. (imperial) | 100.0lbs |
| Extraction Force Min. (metric) | 445N |
| Flammability | UL 94 HB |
| Material | PA66HS, POM |
| Material | Polyamide 6.6 heat stabilized (PA66HS), Polyacetal (POM) |
| Operating Temperature | -40°F to +221°F (-40°C to +105°C), -31°F to +185°F (-35°C to +85°C) |
| Prop65 Warning | No |
| REACH Conformity | Yes |
| ROHS Compliant | Yes |
| UL Listed (US and Canada) | No |
| UL Listed (US) | No |
| UL Recognized (US and Canada) | No |
| UL Recognized (US) | No |
