3-Piece Wide Strap Tie with Coupler, 15.1" Long, 0.37 - 4.12" Dia, 120lbs, PA66HIRHSUV, Black, 600/bag
Part No. 156-03713
|
|
Copied

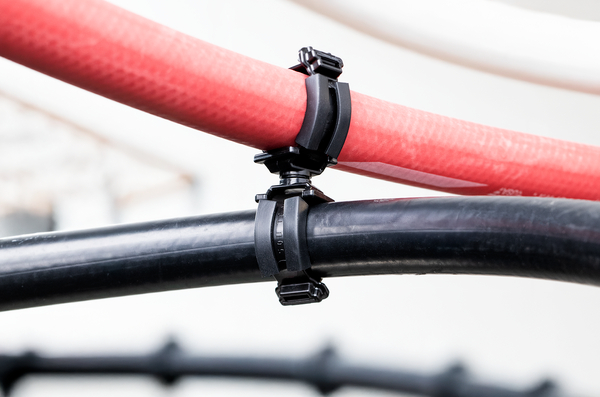

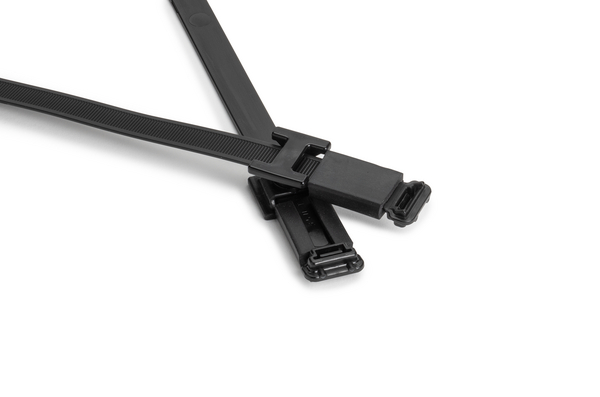

- Three-piece wide strap tie and coupler assembly bundles and separates two routings at any angle from parallel to 90 degrees from each other.
- Wide strap ties with rubber sleeving minimize pinching of soft hoses and convoluted tubing, while the coupler protects routings from friction and abrasion.
- Space-saving coupler means more room for routings.
| Color | Black (BK) |
| Description | Couplers simplify connecting two cable ties for routing and separating bundles. Designed to allow up to 90 degrees of rotation, these assemblies are ideal for applications in which the bundle, pipe or hose requires slight movement in relation to the fastening point. |
| Global Part Number | WSRNEP25MMX2DSWS4-PA66HIRHSUV/CR/PA66HS-BK |
| Packaging Type | carton |
| Part No. | 156-03713 |
| Product family | 3-Piece Tie Assemblies |
| Short Description | 3-Piece Wide Strap Tie with Coupler, 15.1" Long, 0.37 - 4.12" Dia, 120lbs, PA66HIRHSUV, Black, 600/bag |
| Type | WSRNEP25MMX2DSWS4 |
| UV Resistant | Yes |
| Bundle Diameter Max. (imperial) | 4.13" |
| Bundle Diameter Max. (metric) | 105mm |
| Bundle Diameter Min. (imperial) | 0.59" |
| Bundle Diameter Min. (metric) | 15mm |
| Cable Tie Head Length (imperial) | 0.4" |
| Cable Tie Head Length (metric) | 10.25mm |
| Cable Tie Head Width (imperial) | 0.78 |
| Cable Tie Head Width (metric) | 19.81mm |
| For Cable Tie Series | T120 |
| Height (imperial) | 0.43" |
| Height (metric) | 10.86mm |
| Length (imperial) | 15.1" |
| Length (metric) | 383.0mm |
| Min. Tensile Strength (imperial) | 120lbs |
| Min. Tensile Strength (metric) | 535N |
| Width (imperial) | 0.5" |
| Width (metric) | 12.7mm |
| CE Certification | No |
| CSA Certified | No |
| Flammability | UL 94 HB |
| Halogen Free | Yes |
| Material | PA66HIRHSUV, CR, PA66HS |
| Material | Polyamide 6.6 high impact modified, heat and UV stabilized (PA66HIRHSUV), Chloroprene Rubber (CR), Polyamide 6.6 heat stabilized (PA66HS) |
| Operating Temperature | -40°F to +257°F (-40°C to +125°C) |
| Operating Temperature, 1000h | +320°F (+160°C) |
| Operating Temperature, 5000h | +257°F (+125°C) |
| Operating Temperature, 500h | +329°F (+165°C) |
| Prop65 Warning | Yes |
| REACH Conformity | Yes |
| ROHS Compliant | Yes |
| UL Listed (US and Canada) | No |
| UL Listed (US) | No |
| UL Recognized (US and Canada) | No |
| UL Recognized (US) | No |
