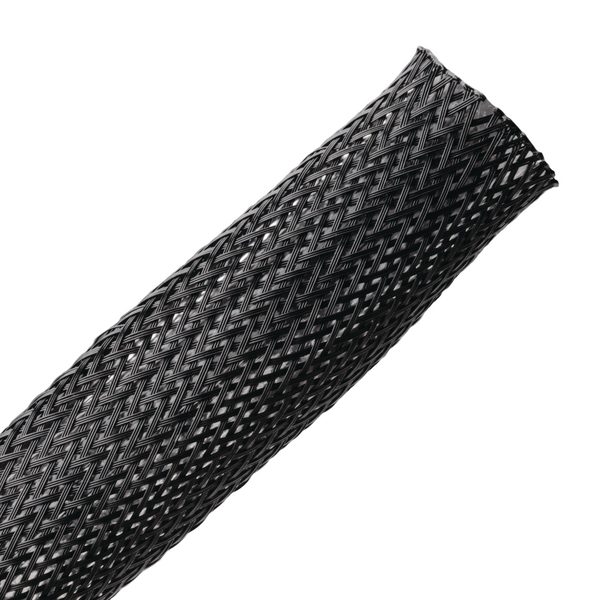

Helagaine Braided Sleeving, Dispenser Pack, 1/2" Dia, 3:1 Shrink Ratio, PET, BK, 32.8ft/Reel
Part No. 170-80250
|
Copied
- Dispenser carton protects sleeving from dirt and keeps it from unraveling.
- High 3:1 expansion ratio allows for wide range of bundle sizes.
| Brand Family | Helagaine |
| Color | Black (BK) |
| Description | Helagaine dispenser packs designed for convenience and easy dispensing during in field-service applications. |
| Global Part Number | HLB25-PET-BK |
| Part Number | 170-80250 |
| Product Family | Braided Sleeving |
| Product Subfamily | Braided Sleeving Dispenser Packs |
| Short Description | Helagaine Braided Sleeving, Dispenser Pack, 1/2" Dia, 3:1 Shrink Ratio, PET, BK, 32.8ft/Reel |
| Type | HLB25 |
|
|
|
| Bundle Diameter Max. (imperial) | 1.18" |
| Bundle Diameter Max. (metric) | 30mm |
| Bundle Diameter Min. (imperial) | 0.39" |
| Bundle Diameter Min. (metric) | 10mm |
| Diameter (imperial) | 0.98" |
| Diameter (metric) | 25mm |
| Length (imperial) | 32.8ft |
| Length (metric) | 10.0m |
| Nominal Diameter (imperial) | 1" |
| Nominal Diameter (metric) | 25mm |
| Recommended Cutting Tools | Hot Knife |
| Reel Length (imperial) | 32.8ft |
| Abrasion Resistance | Medium |
| CE Certification | No |
| CSA Certified | No |
| Flammability | UL 94 V-2 |
| Halogen Free | Yes |
| Hazardous Goods | No |
| Material | PET |
| Material | Polyester (PET) |
| Melting Point | +482 °F (+250 °C) |
| Operating Temperature | -58°F to +302°F (-50°C to +150°C) |
| Prop65 Warning | No |
| REACH Conformity | Yes |
| ROHS Compliant | Yes |
| UL Listed (US and Canada) | No |
| UL Listed (US) | No |
| UL Recognized (US and Canada) | No |
| UL Recognized (US) | No |
| UV Resistant | No |
