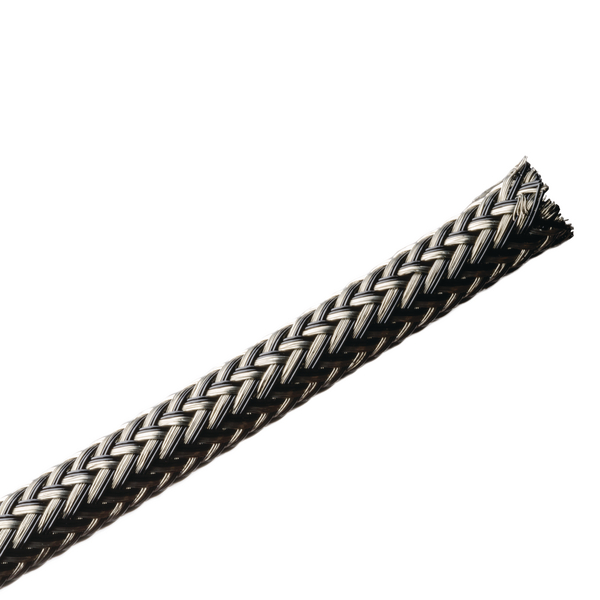

Helagaine Highly Expandable Braided Sleeving, 3:1, 20mm Dia., PET, BK, 328.0 ft/Reel
Art.-No. 170-00200
|
|
Copied
This product is not available anymore.
- Flexible polyester braided construction offers high abrasion protection and easy application.
- High 3:1 expansion ratio for fast and easy installation.
| Application | Helagaine HEGPX is used whenever a higher expansion rate is required. HEGPX is particularly suitable for use in the automotive industry, panel building and in electrical appliances. |
| Application Range | Indoor Use |
| Color | Black (BK) |
| Description | HellermannTyton’s Helagaine HEGPX provides exceptional abrasion resistance and flexibility in application. Made with a durable mix of materials, Helagaine is expandable and can be easily applied over irregular surfaces or whenever a high expansion rate is required. |
| Global Part Number | HEGPX20-PES-BK |
| Key product features | highly expandable |
| Packaging Type | meter |
| Part No. | 170-00200 |
| Product family | Braided Sleeving |
| Short Description | Helagaine Highly Expandable Braided Sleeving, 3:1, 20mm Dia., PET, BK, 328.0 ft/Reel |
| Type | HEGPX20 |
|
|
|
| Bundle Diameter Max. (imperial) | 1.26" |
| Bundle Diameter Max. (metric) | 32mm |
| Bundle Diameter Min. (imperial) | 0.47" |
| Bundle Diameter Min. (metric) | 12mm |
| Diameter (imperial) | 0.79" |
| Length (imperial) | 328.0ft |
| Length (metric) | 100m |
| Nominal Diameter (imperial) | 0.5" |
| Nominal Diameter (metric) | 20mm |
| Reel Length (imperial) | 328.0ft |
| Trade Size | 1/2 " |
| EN 45545-2 Results | R22 HL2, R23 HL2 |
| Flammability | UL 94 V-2, FMVSS 302 |
| Halogen Free | Yes |
| Material | PES |
| Material | Polyester (PES) |
| Melting Point | +482 °F (+250 °C) |
| Operating Temperature | -58°F to +302°F (-50°C to +150°C) |
| REACH Conformity | Yes |
| ROHS Compliant | Yes |
| UL File Number [Logo] | E197993 [RU] |
| UL Listed (US and Canada) | No |
| UL Listed (US) | No |
| UL Recognized (US and Canada) | No |
| UL Recognized (US) | Yes |
