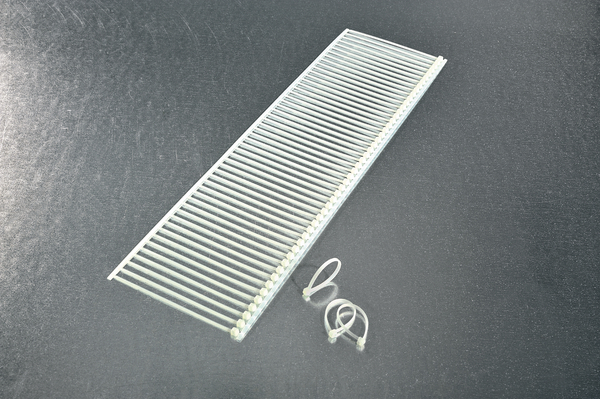

Cable Tie for AT2000, 18lb Tensile Strength, PA66V0, White, 50/bandolier, 500/pkg
Part No. 120-04401
| T18RA50VO
|
Copied
- Cable ties can be easily recycled to meet environmental management objectives.
- HellermannTyton 18 lb. cable ties are available in natural, black, and other colors (upon request) to support color coded wire management schemes.
- Bandoliers of 50 or reels of 5000 cable ties are available, enabling maximum user efficiency in hand-held, bench-mount, or automated processes.
| Brand Family | AT2000® |
| Color | White (WH) |
| Description | HellermannTyton's AT2000 is designed to use 18 lb. cable ties and will fasten bundles up to 3/4" diameter. Engineered specifically for automatic cable tie assembly, these ties are offered in varying material compositions and colors, so manufacturers can select the ties that meet the application requirements and industry best practices. |
| Global Part Number | T18RA50-PA66V0-WH |
| Part Number | T18RA50VO |
| Product Family | Cable Tie Application Tools |
| Product Subfamily | Cable Ties for Automatic Tools |
| Short Description | Cable Tie for AT2000, 18lb Tensile Strength, PA66V0, White, 50/bandolier, 500/pkg |
| Technical Description | Cable Tie for AT2000, White, 50/bandolier |
| Type | T18RA50 |
|
|
|
| Bundle Diameter Max. (imperial) | 0.79" |
| Bundle Diameter Max. (metric) | 20.0mm |
| Bundle Diameter Min. (imperial) | 0.03" |
| Bundle Diameter Min. (metric) | 0.7mm |
| Length (imperial) | 4.0" |
| Length (metric) | 4.8mm |
| Min. Tensile Strength (imperial) | 18lbs |
| Min. Tensile Strength (metric) | 80N |
| Thickness (imperial) | 0.043" |
| Thickness (metric) | 1.1mm |
| Width (imperial) | 0.1" |
| Width (metric) | 2.5mm |
| CE Certification | No |
| CSA Certified | No |
| Flammability | UL 94 V-0 |
| Halogen Free | Yes |
| Material | PA66V0 |
| Material | Polyamide 6.6 V0 (PA66V0) |
| Operating Temperature | -40°F to +221°F (-40°C to +105°C) |
| Prop65 Warning | No |
| REACH Conformity | Yes |
| ROHS Compliant | Yes |
| UL File Number [Logo] | E64962 [RU] |
| UL Listed (US and Canada) | No |
| UL Listed (US) | No |
| UL Recognized (US and Canada) | No |
| UL Recognized (US) | Yes |
| UV Resistant | No |
