You’re either an automotive manufacturer utilizing chassis castings or you supply electrical or fluid routings to these customers. Either way, if you employ secondary operations to mount your routings, we have solutions to save time, simplify installation and reduce costs.
Casting Mounts attach directly to fixtures integrated into a casting without the need for tools. All can be preloaded onto a harness or hose, or you can use them on the assembly line as needed.

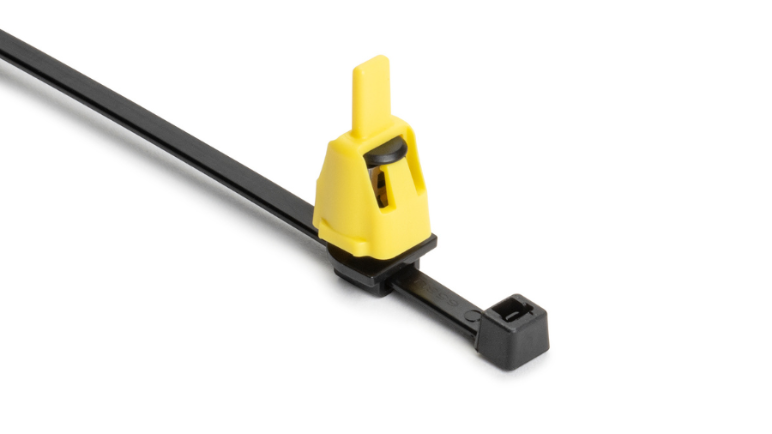

Our collection of 8 mm blind hole mounts can be inserted into existing holes with just 10 lb of push-in force. Paired with a T50 cable tie, these mounts offer pull-out strength of more than 50 lb thanks to their integrated metal barb. Choose from flush and offset saddle versions plus a 17 mm connector clip option.
Our boss mount fits 6 mm smooth bosses. It offers flexible location options to attach a cable tie. Easy to install, this part requires less than 10 lb push-on force yet provides over 150 lb of pull-off strength. If you’ve got an edge in your product design, we’ve got an easy-to-use mounting option.
Our edge clip version fits 3 to 6 mm edges or ribs. It installs easily by hand and contains an integrated metal clip to stay firmly in place. It pairs with a T50 tie and offers multiple bundle orientations to route cables and hoses where they need to go.
Simplify wire and tube routing on castings – without sacrificing performance. Order samples of HellermannTyton casting mounts and see for yourself. Contact your sales representative today.
